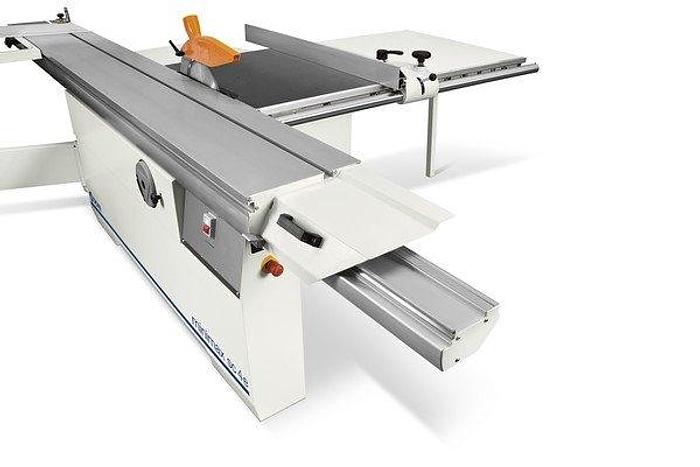

MINIMAX FORMULA - SAMCO SC4 ELITE

PANEL SAW SCM MINIMAX SC4 ELITE CE
The circular saw with tilting blade for demanding craftsmen and joineries that combines working precision with
practicality and convenience.
Advantages

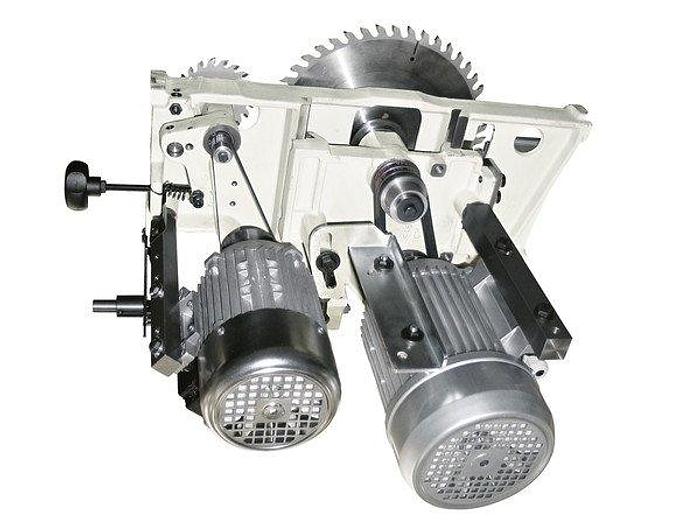

A perfect cutting result is guaranteed by the saw unit consisting of a powerful cast iron structure that gives it
solidity and rigidity. Stable support of the workpiece with the square frame measuring 1100 x 650
mm. Customization for every need of use, with sliding wagons in anodized aluminum available with
strokes from 1660, 2310, 2660, 3260 mm.
Data sheet
sc 4 elite
Max. Saw blade diameter with mounted engraver
315 mm
Max projection saw blade from the plane at 90 °
100 mm
Ability to square
1660 mm
Parallel guide cutting width (standard)
900 mm
Three-phase motor power starting from (SINGLE-PHASE OPTION)
4 kW - 50 Hz
