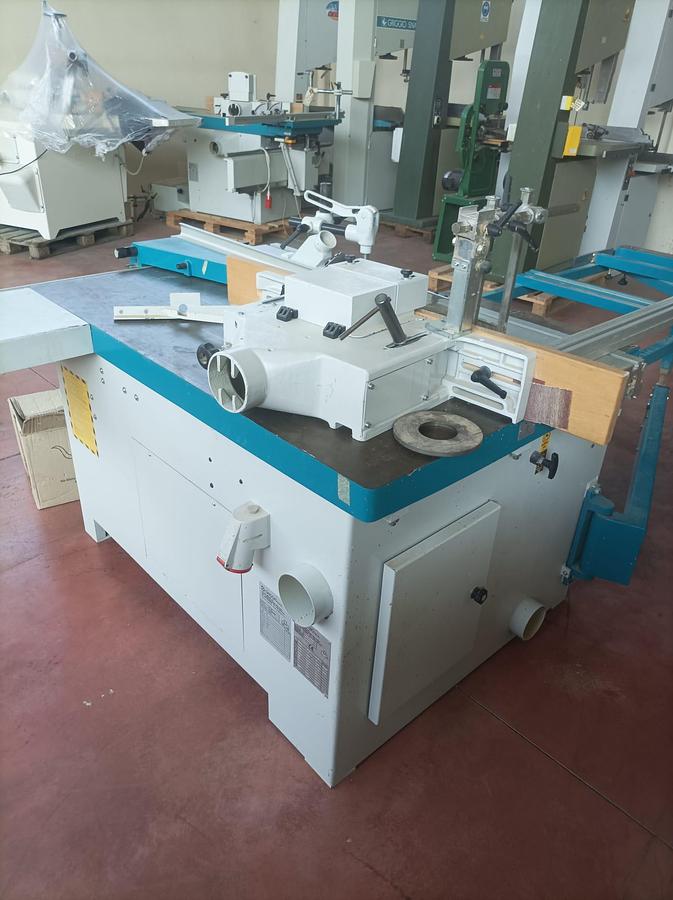

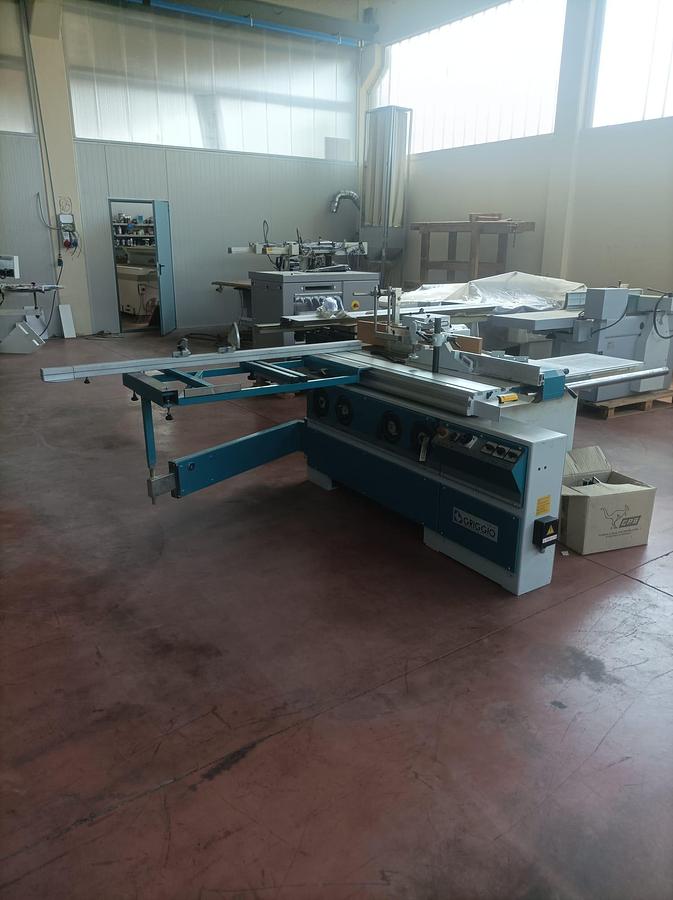

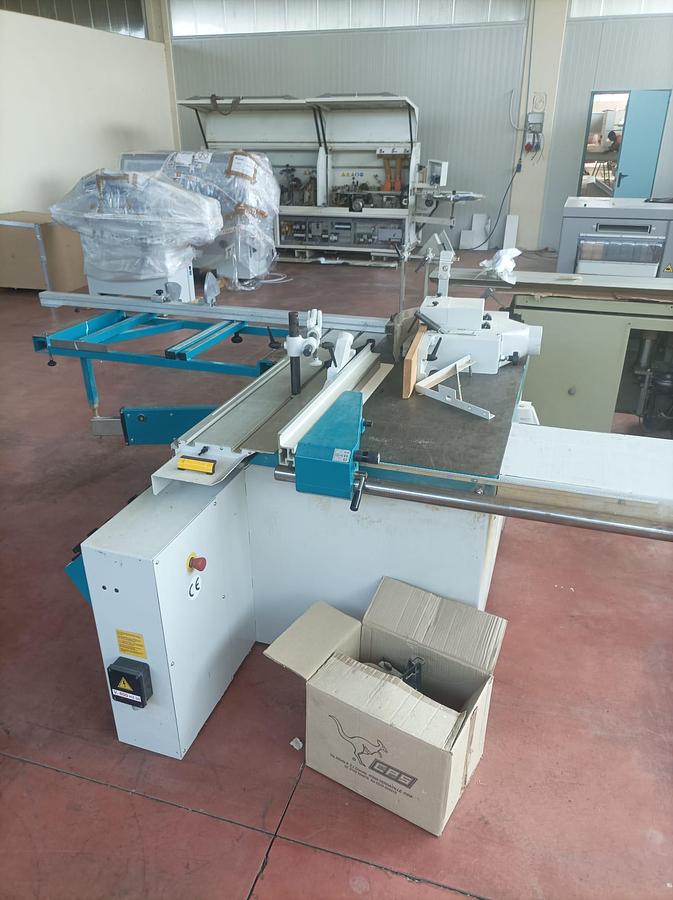

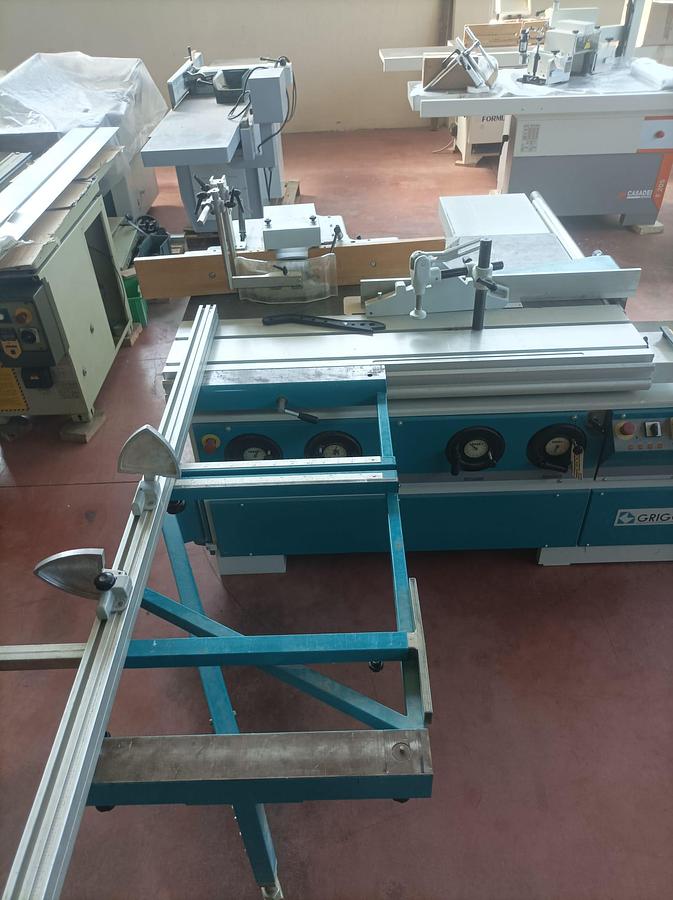

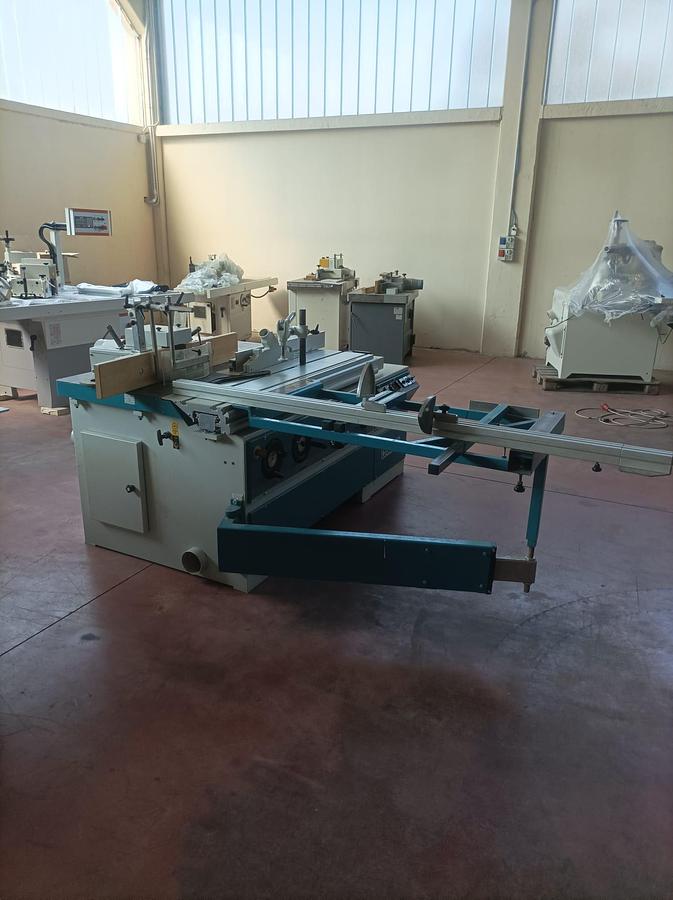

COMBINED SAW SPINDLE MOULDER GRIGGIO TS 150 CE
COMBINED SAW SPINDLE MOULDER GRIGGIO TS 150 CE
Contact us for price
or
Call us +390376/838383
Description
COMBINED SAW SPINDLE MOULDER
CIRCULAR SAW "> Spindle moulder table dimensions "> 1380 x 465 mm "> Saw blade inclination "> 90 ° ÷ 45 ° "> Max. Saw blade diameter with mounted scoring unit "> 350 mm "> Max. Squaring capacity (CE) standard "> 1550 mm "> TOUPIE "> Useful length of the spindle moulder shaft "> 125 mm "> Spindle moulder speed at 50 Hz rpm "> 3500-6000- 8000-10000 "> Max size of the retracting tool under the plane "> 240 x 85 mm "> GENERAL CHARACTERISTICS "> Motor power (HP) "> 4 kW 5.5 HP 50 Hz X 2
Specifications
| Manufacturer | GRIGGIO |
| Model | TS 150 |
| Condition | Used |
| Stock Number | usa3555 |
| "> Reliability | carriage with prismatic sliding guides in hardened steel, with interposition of spheres and hardened riveted guides. |
| "> Flexibility | the guide with three linear movements guided with a micrometric mechanical numerical indicator allows to adjust the machine without the need for tests. The guide is equipped with repositioning memory. |
| "> Toughness | cast iron spindle moulder unit with heavy structure, tilting on request |
