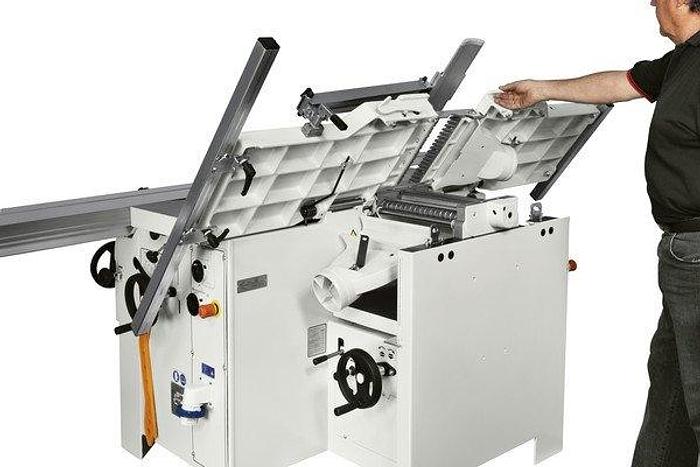

UNIVERSAL COMBINED MACHINE SCM MINIMAX CU410 CLASSIC

UNIVERSAL COMBINED CU410 CLASSIC SCM MINIMAX

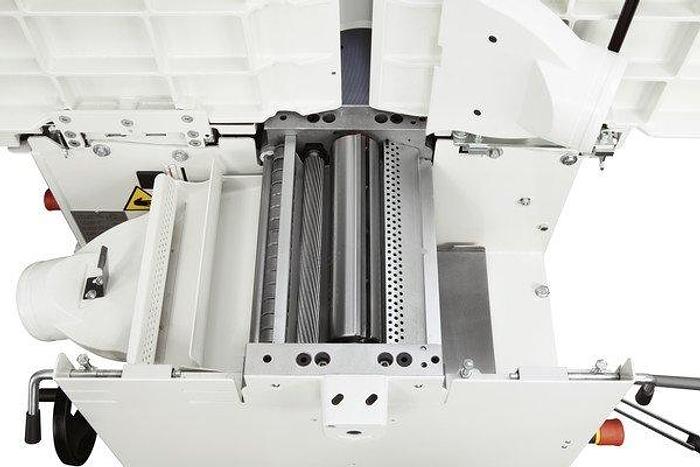

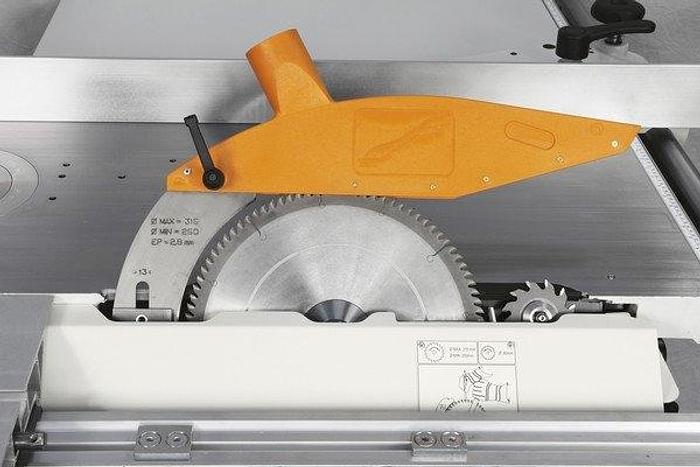

The universal combined machine for demanding hobbyists and essential craft workshops, practical and with the best value price / performance. Advantages A surprising cut both of the thick solid wood and of the panels also ennobled, with the new group saw with blade with a maximum diameter of 315 mm with mounted scoring unit. New scoring unit easily adjustable from outside the machine available on request. More precise and comfortable cuts thanks to a perfectly stable and guaranteed support, even for larger pieces, from sliding carriage 270 mm wide and from large square frame (960 x 600 mm) supplied as standard. simultaneously. Data sheet cu 410 classic Useful working width of the planer 410 mm Total length of the flush shelves 1800 mm Height min. ÷ max. working thickness 3 ÷ 230 mm Max. Saw blade diameter with mounted engraver 315 mm Max projection table saw blade at 90 ° / 45 ° 100/79 mm Ability to square 1660 ÷ 2660 mm Parallel guide cutting width 900 mm Maximum diameter of the tool to be profiled 210 mm
